Victory Luminaires

Distribution & Lighting Panels

FLP /WP Lighting Distribution Panel

(6 way / 12 way /18 way /24 way /36 way)
CAT No. VL/DB/..SERIES
Conforming Certification: CIMFR /BIS/PESO
Material:Die cast Aluminum Alloy.
Terminals : In coming Terminals : Dine Rail Terminals upto 35/50 Sq. mm 04 Nos.
Out Going Terminals :Dine Rail Terminals in upto 2.5/4 Sq. mm Max upto 72 Nos.
Wiring : as per Panel requirement.
In- Coming: PVC Max 10 to 16 Sq mm Multi stand wire ( Red /Yellow / Blue / Green)
Out Going : PVC Max 2.5 to 6 Sq.mm Multi stand wire ( Red /Yellow / Blue / Green)
Finish : Hammertone Grey/ RAL 7032 structured powder coated ( As per customer request)

Powder Coated CRCA Canopy for Outdoor Applications
Mtg : Wall / Pedestal
Instruments / Ammeter / Volt meter / Indicators (Red/ Yellow/ Green) 230 V AC, 50 Hz

Sr. No.	Cat No.	IN COMING MCB QTY.		Out Going MCB Qty.		In –Coming Cable Entries	OUT GOING Cable Entries
1	VL/DB/006	32 A TPN	1 No	16A/SP	06 No.	M32 x 02 No.	M20 X 6 Nos.
2	VL/DB/012	63 A TPN	1 No	16A/SP	12 No.	M32 x 02 No.	M20 X 12 Nos.
3	VL/DB/018	63 A TPN	1 No	16A/SP	18 No.	M32 x 02 No.	M20 X 18 Nos.
4	VL/DB/024	63 A TPN	1 No	16A/SP	24 No.	M32 x 02 No.	M20 X 24 Nos.
5	VL/DB/036	63 A TPN	1 No	16A/SP	36 No.	M32 x 02 No.	M20 X 36 Nos.

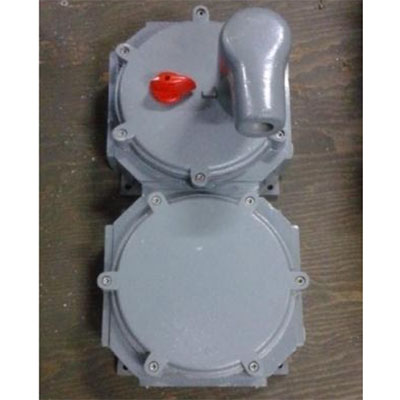

FLP / WP SWICTH SOCKETS WITH PLUGS 5 PIN

Cat Ref: VL/SS/601
Conforming Certification: CIMFR /BIS/PESO
Material : Die cast Aluminum Alloy.
Terminals : In coming Terminals : Dine Rail Terminals upto 35/50 Sq. mm 04 Nos.
Finish : Hammertone Grey/ RAL 7032 structure powder coated ( As per customer request

Sr. No.	Cat No.	ON- OFF Switch	In coming Terminals	In –Coming Cable Entries	OUT GOING 5 pin Plug Cable Entire
1	VL/SS/601	63A /4 pole – 01 No.	35/50 Sq .mm Bus Bar type – 04 Nos.	M 40 x 02 No.	M 32 X 1 No.

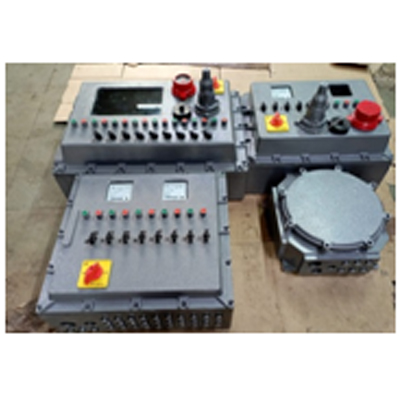

FLP /WP Control Panel Conforming Certification: CIMFR /BIS/PESO

Material : Die cast Aluminum Alloy.
Terminals :In coming Terminals : Dine Rail Terminals upto 120 SQ.MM Max
Out Going Terminals : Dine Rail Terminals in upto 2.5/4 Sq. mm Max upto 250 Nos.
In- Coming : Max 120SQ.MMSq mm Multi stand wire ( Red /Yellow / Blue / Green)
Finish: RAL 7032 structured powder coated standard (Ifany other specific as per customer request)

Sr. No.	Cat Ref	Max. Rating In Coming / Out going	Remarks
1	VLCP…SERIES<	100A- 1000 Amps upto 24Ac to 240 V AC or upto 440V- 550V AC/ 24V DC to 210V DC	Multiple enclosure assembly control panel Assembly as RCB, RCBO,ELCB,MCB,MCCB, isolator Rotary switch/ Voltmeter/ Ammeter/ VFD Meter/ Annunciation Panel upto 250A/4 Pole AC or DC Bus bar Panel/ DOL Starter upto 125 HO 200Amp/ 415V AC / Star delta starter Multiple Assembly with Stop start Push button, Rotary switch, Indicators, Switch socket/ Hooter/ Fire alarm with 100VA Transformer with switch socket rating: 16A/32A/63A 5 pin All Multiple assembly with Junction Box or separate individual Junction Boxes suitable with din rail terminals 1.5 Sq.mm to 250 Sq.mm bus bar type terminals or assembled as per customer or end user requirements.
2	VL/JBF/ 107	250Amp upto 240V/550V AC or 24V DC to 210V DC
3	VL/JBF/ 108	350Amp upto 240V/550V AC or 24V DC to 210V DC
4	VL/JBF/ 109	500Amp upto 240V/550V AC or 24V DC to 210V DC

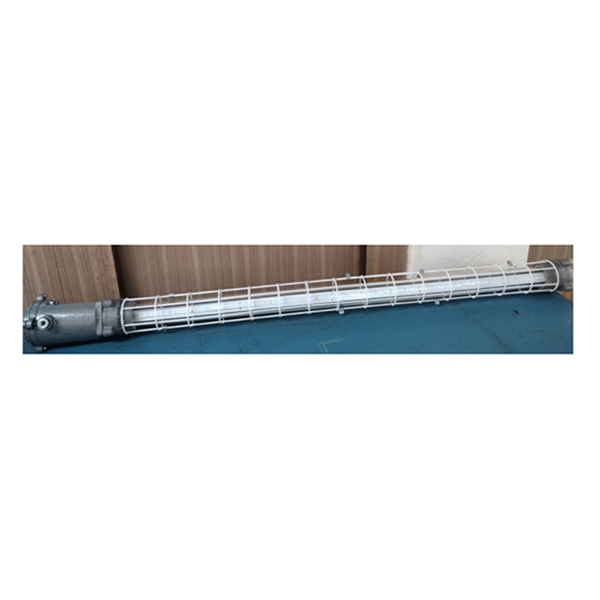

FLP /WP TUBELIGHT LUMINAIRES VLTL020( 2 FEET long) / VLTL040( 4 Feet long)

Material : Die cast Aluminum Alloy.
Glass :TUBULAR HEAT RESISTANT BOROSILICATE GLASSØ 60 mm ( 2 FEET/ 4 FEET LONG )
Cable Entries: Max 02 Nos* M20 or ¾”ET
Finish:RAL 7032 Structure Powder Coated
Electrical rating: 240V AC, 50 Hz Incoming supply
Accessories: Optional Led Tubes will be provided upon customer request . Channel with Hinge Bracket provided for ceiling/surfacemounting . Alternately C Clamp provided for direct ceiling mounting
Terminals / Connectors : In coming Terminals max upto 2 Way / 15Amp* 02 Nos LILO .

Sr. No.	Cat No.	Direct Led Batten	PCB Led strip/ Driver Module	In coming Terminals	Temperature
1	VLTL040	Market available Led Batten Max upto 120W coupled to another for 220W	Max upto 230W & 220W with strip type MCPCB and driver	2 Way/ 15Amp – 02 Nos Lilo Max	T6
