Power Jack

Flameproof Lighting Luminaires

Lighting Products

FLP Streetlight Lighting Fixture

Specifications:

  • CAT No.: VL/CRL /380
  • Material : Die cast Aluminum Alloy.
  • FLP/WP Enclosure for Streetlight LED Fixture
  • Ex 'd' IIA / IIB , IP-65 for Zone 1 & 2 Areas , certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Glass : Heat Resistent & Toughened Clear Glass
  • Cable Entries: Max 2 Nos. M20 or ¾”ET
  • Finish: Hammertone Powder Coated
  • Accessories : Electronic LED Driver with Surge Protection
  • Mounting: Pole mounting by means of pipe
  • Electrical Rating : 240 V AC , 50 Hz.

Description:

Description Cat No. LED Description Cat No. LED Temp
FLP/WP STREETLIGHT FIXTURE WITH COB LED VLCRL 380 30/35 W FLP/WP STREETLIGHT FIXTURE WITH DISCRETE TYPE PCB LED VLCRL 380 35 W (DIS) T6
VLCRL 380 40/45 W VLCRL 380 40/45 W (DIS) T6
VLCRL 380 2 X 35 W VLCRL 380 60W &75 W (DIS) T6
FLP Cleanroom Lighting Fixture

Specifications:

  • CAT No. VL/CRL /380
  • Material : Die cast Aluminum Alloy.
  • FLP/WP Enclosure for Cleanroom LED Fixture with Bottom Opening
  • Ex 'd' IIA / IIB , IP-65 for Zone 1 & 2 Areas , certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Glass : Heat Resitent & Toughened Frosted Glass
  • Cable Entries: Max 2 Nos. M20 or ¾”ET
  • Finish: Hammertone Powder Coated
  • Accessories : Electronic LED Driver with Surge Protection
  • Mounting: Ceiling / Surface Mounting by means of cradle
  • Electrical Rating : 240 V AC , 50 Hz.

Description:

Description Cat No. LED Description Cat No. LED Temp
FLP/WP CLEANROOM LIGHTING FIXTURE WITH COB LED VLCRL 380 30/35 W FLP/WP CLEANROOM LIGHTING FIXTURE WITH DISCRETE TYPE PCB LED VLCRL 380 35 W (DIS) T6
VLCRL 380 40/45 W VLCRL 380 40/45 W (DIS) T6
VLCRL 380 2 X 35 W VLCRL 380 60W &75 W (DIS) T6

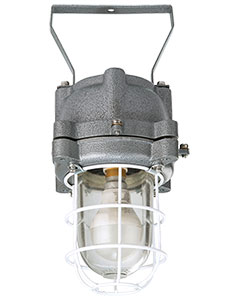

FLP Hand Lamp Led Lighting Fixture

Specifications:

  • CAT No. VL/HL/130
  • FLP/WP Enclosure for Hand Lamp Fixture
  • Material : Die cast Aluminum Alloy.
  • Ex 'd' IIA / IIB / IIC IP-66 for Zone 1 & 2 Areas, certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Glass : Heat Resistent Toughened Clear Dome Glass
  • Cable Entries:Max 1 Nos. M20 or ¾”ET
  • Finish: Hammertone Powder Coated
  • Accessories : ES-27 threaded holder( optional upto 15W Led lamp / upto upto 20W Led driver and surge protection )
  • Mounting: Handle provided for using as handheld equipment/ Eyebolt will be provided upon customer request
  • Electrical Rating : 24V AC/DC or 240V AC, 50 Hz.

Description:

Description Cat No. Lamp Temperature
FLP / WP HAND LAMP LIGHTING FIXTURE VL/HL/130 Lamp Upto 15 W Led/ Discrete PCB upto 20W T6

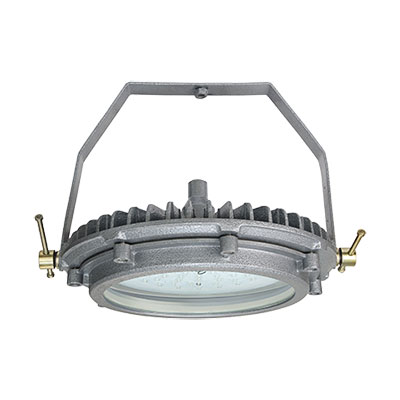

FLP Led Wellglass / Hoghbay / Floodlight Lighting Fixture

Specifications:

  • CAT No. VL/CFL/345 (FLP Separate Control Gear Box shall be use for LED Driver ( Cat No. VL/CG/130)
  • FLP/WP Enclosure for FOR Led Wellglass / Hoghbay / Floodlight Lighting Fixture
  • Material : Die cast Aluminum Alloy.
  • Ex 'd' IIA / IIB IP-66 for Zone 1 & 2 Areas ,certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Glass : Heat Resistent Toughened Clear Dome Glass
  • Cable Entries: Max 1 Nos. M20 or ¾”ET Plug entry
  • Finish: Hammertone Powder Coated
  • Accessories : Electronic LED Drive with Surge Protection
  • Mounting: Wall/ Surface/Ceiling Mounting
  • Electrical Rating : 240 V AC , 50 Hz.

Description:

Description Cat No. LED Description Cat No. LED Temp
LED (COB TYPE) Highbay/Floodlight/Wellglass VL/CFL/345 35 W*02Nos ( 70W) LED (COB) LED (Discrete Type) Well Glass /Highbay /Floodlight VL/CFL/345 75 w LED (DISCRETE TYPE) T6
VL/CFL/345 45W*02 Nos( 90W) LED (COB) VL/CFL/345 90 w LED (DISCRETE TYPE) T6
VL/CFL/345 120w LED (DISCRETE TYPE) T6
VL/CFL/345 150w LED (DISCRETE TYPE) T6

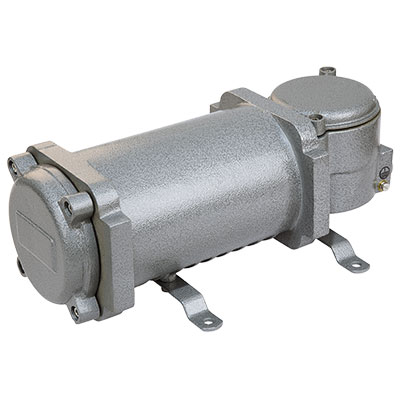

FLP Control Gear Box

Specifications:

  • CAT No. VL/CG/130
  • FLP/WP Enclosure For Control Gear Box Floor Led Driver
  • Material : Die cast Aluminum Alloy.
  • Ex 'd' IIA / IIB /IIC IP-66 for Zone 1 & 2 Areas ,certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Cable Entries: Max 3 Nos. M20 or ¾”ET
  • Finish: Hammertone Powder Coated
  • Mounting: Wall/ Surface/Ceiling Mounting
  • Electrical Rating : 240 V AC , 50 Hz.

Description:

Description Cat No. Driver Temp
LED Driver Assembly VL/CG/130 LED Driver upto 75 TO 150 W T6

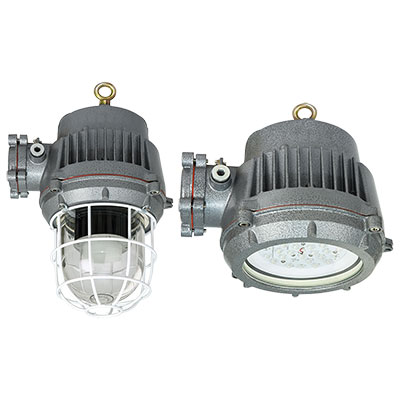

FLP Led Wellglass Lighting Fixture

Specifications:

  • CAT No. VLWI..260
  • FLP/WP Led Well Glass Lighting Fixture
  • Material : Die cast Aluminum Alloy.
  • Ex 'd' IIA / IIB / IIC IP-66 for Zone 1 & 2 Areas ,certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Glass : Heat Resistent Clear Toughend Glass (Dome/Flat)
  • Cable Entries: Max 2 Nos. M20 or ¾”ET
  • Finish: Hammertone Powder Coated
  • Accessories: Electronic LED Drive with Surge Protection
  • Mounting: Eyebolt for ceiling / cradle for surface
  • Electrical Rating : 240 V AC , 50 Hz.

Description:

Description Cat No. LED Temp
FLP Led Wellglass Lighting Fixture (COB TYPE/DISCRETE TYPE) Dome Glass with Diffuser/ Flat Glass VLWI 260(COB) 30/35W T6
VLWI 260(COB) 40/45W T6
VLWI 260(DISCRETE) 60W T6
VLWI 260(DISCRETE) 70W T6
FLP / WPLED Fluroscent Tubelight Lighting Fixture

Specifications:

  • CAT No. VLTL020( 2 FEET long) / VLTL040( 4 Feet long)
  • FLP / WP LED Fluroscent LED Tubelight Light Fixture
  • Material : Die cast Aluminum Alloy.
  • Ex 'd' IIA / IIB IP-66 for Zone 1 & 2 Areas ,certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Glass : Tubular Heat Resistent Borosilicate Glass( 2 Feet/ 4 Feet Long )
  • Cable Entries: Max 2 Nos. M20 or ¾”ET
  • Finish: Hammertone Powder Coated
  • Electrical rating: 240V AC, 50 Hz Incoming supply
  • Accessories: Optional Led Tubes will be provided upon customer request
  • Mounting: Bracket provided for ceiling/surface
  • Terminals / Connectors : In coming Terminals max upto 2 Way / 15Amp* 02 Nos LILO

Description:

Sr.No Cat No. Tube Holder In Coming Terminals Temperature
1 VLTL040 T8 Pop Up Holder for Led Tubes Max upto 2*18W Led Tubes 2 Way/ 15Amp – 02 Nos. T6

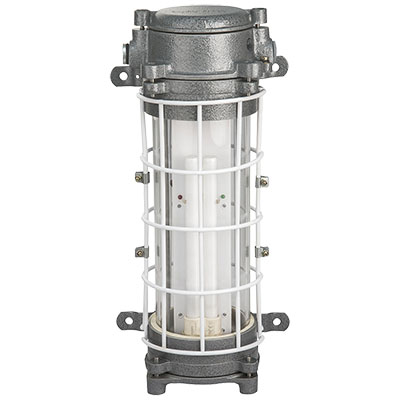

FLP / WPLED Fluroscent Emergency Tube Lighting Fixture

Specifications:

  • CAT No. VLTL010
  • FLP / WP Fluroscent LED Emergency Tube Lighting Fixture
  • Material : Die cast Aluminum Alloy.
  • Ex 'd' IIA / IIB IP-66 for Zone 1 & 2 Areas ,certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Glass : Tubular Heat Resistent Borosilicate Glass( 1 Feet Long )
  • Cable Entries: Max 2 Nos. M20 or ¾”ET
  • Finish: Hammertone Powder Coated
  • Electrical rating: 240V AC, 50 Hz Incoming supply
  • Accessories: Electronic circuit with battery ( backup upto 1-2 hours)
  • Mounting: Cradle provided for ceiling/ surface
  • Terminals / Connectors : In coming Terminals max upto 2 Way / 15Amp* 02 Nos LILO .

Description:

Sr.No Cat No. Tube Holder In Coming Terminals Temperature
1 VLTL010 T8 Pop Up Holder for Led Tubes Max upto 12 Led Lamp 2 Way/ 15Amp – 02 Nos. T6
FLP / WPLED Aviation Obstruction Lighting Fixture

Specifications:

  • CAT No. VLWA260
  • FLP / WP LED Aviation Obstruction LED Tubelight Fixture
  • Ex 'd' IIA / IIB IP-66 for Zone 1 & 2 Areas ,certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Material : Die cast Aluminum Alloy.
  • Glass : Heat Resistent Borosilicate Toughened Clear Dome DOME Glass
  • Cable Entries: Max 2 Nos. M20 or ¾”ET
  • Lamp : Led Aviation Flashing Type 15 W Red Colour Lamp ( ES -27 Threaded Lamp Holder) / Upto 25W Beacon Rotating Type Red Colour ( Upon customer request) / 15W Aviation Led Twin Fixture ( Upon customer request)
  • Finish: Hammertone Powder Coated
  • Electrical rating: 240V AC, 50 Hz Incoming supply
  • Terminals / Connectors : In coming Terminals max upto 2 Way / 15Amp* 02 Nos LILO .
FLP LED Wellglass /Highbay/ Floodlight Lighting Fixture –Integral Type

Specifications:

  • CAT No. VLWHV205
  • FLP LED Wellglass /Highbay/ Floodlight Lighting Fixture
  • Material : Die cast Aluminum Alloy.
  • Ex 'd' IIA / IIB / IIC IP-66 for Zone 1 & 2 Areas ,certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Glass : Heat Resistent Toughened Glass( Dome Type Lens )
  • Cable Entries: Max 2 Nos. M20
  • Finish: Hammertone Powder Coated
  • Accessories: Eyebolt provided for ceiling use as wellglass/ safety chain provided use as Highbay / optional cradle for floodlight surface mounting as per customer request
  • Electrical rating: 240V AC, 50 Hz

Description:

Description Cat No. LED Temp
FLP LED Wellglass /Highbay/ Floodlight Lighting Fixture (COB TYPE/DISCRETE TYPE) VLWHV205(DISCRETE PCB ) 60W T6
VLWHV205(DISCRETE PCB ) 70/75W T6
FLP LED Wellglass /Highbay/ Floodlight Lighting Fixture –Integral Type

Specifications:

  • CAT No. VLWHF137
  • FLP LED Wellglass /Highbay/ Floodlight Lighting Fixture
  • Material : Die cast Aluminum Alloy.
  • Ex 'd' IIA / IIB / IIC IP-66 for Zone 1 & 2 Areas ,certification: BIS /CIMFR/PESO confirming to IS/IEC 60079
  • Glass : Heat Resistent Toughened Glass( Dome Type Lens )
  • Cable Entries: Max 2 Nos. M20 or ¾”ET
  • Finish: Hammertone Powder Coated
  • Accessories: Eyebolt provided for ceiling use as wellglass/ safety chain provided use as Highbay / optional cradle for floodlight surface mounting as per customer request
  • Electrical rating: 240V AC, 50 Hz

Description:

Description Cat No. LED Temp
FLP LED Wellglass /Highbay/ Floodlight Lighting Fixture (COB TYPE TYPE) With Dome Type Lens VLWHF137(COB TYPE LED ) 30/35W T6
VLWHF137(COB TYPE LED ) 40/45W T6
