Flameproof Junction Box & Switchgear

Junction Box Products

FLP Multiway Junction Box

Specifications:

  • Cat Ref:VL/IH/105(Instrument Panel) and VL/JB/105
  • FLP Multiway Junction(ID: 250 mm) Box Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof Multi Way Junction Box , suitable for assembled upto 2.5/4/6 /10/16/25/35/50/70/95 Sq.mm Clip On Type Din Rail Mtg. Terminals in Die Cast Al. Alloy LM- 6 Construction ,The Cover is fixed by means of socket head Allen cap Stainless Steel Screws to the Main Enclosure
  • Electrical Rating : Upto 100A/ 550V , 50 Hz
  • Cable Entries: Max 2 Nos. M20 or ¾”ET
  • Paint Shade: RAL 7032 structure powder coated

Description:

Sr. No. Cat No. Product CODE Terminal size Terminals Max. Qty. Max. Nos. Cable Entries Each Side
1 VL/JB/105 As per Non std 2.5/4 Sq.mm 25 x 2 Row Cable Entries size and qty on Request each Side.
M20/M25/M32
2 VL/JB/105 As per Non std 6 Sq.mm 20 x 2 Row
3 VL/JB/105 As per Non std 10 Sq.mm 15 x 2 Row
4 VL/JB/105 As per Non std 16 Sq.mm 12 x 2 Row
5 VL/JB/105 As per Non std 25 Sq.mm 12 x 1 Row
6 VL/JB/105 As per Non std 35 Sq.mm (Bus bar Type) 6 x 1 Row
7 VL/JB/105 As per Non std 50 Sq.mm (Bus bar Type) 6 x 1 Row
8 VL/JB/105 As per Non std 70 Sq.mm (Bus bar Type) 6 x 1 Row
9 VL/JB/105 As per Non std 95 Sq.mm (Bus bar Type) 4 x 1 Row
FLP/WP Push Button Station Start Stop

Specifications:

  • FLP/WP Push Button Station Start Stop Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Cat Ref:VL/PB/2/201
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof ON-OFF Push Button Station (In Direct cable entry Type), suitable for assembly upto 02 Nos. Contact Elements. “1No” Elements operated with Green Shrouded Push knob & “1Nc” Element Operated with Red color Mushroom Head or key Operated Push actuator, Terminal box assembled with 14/0.3PVC Wire in din Rail Mtg. Terminals in Die Cast Al. Alloy LM- 6 Construction, The main ON –OFF PBS Cover and Plain Cover are fixed by means of socket head Allen cap Stainless Steel Screws to the Main and terminal Enclosure.
  • FLP/WP ENCLOSURE FOR CLEANROOM LED FIXTURE WITH BOTTOM OPENING
  • Electrical Rating : Upto 10A/ 240V /415V , 50 Hz
  • Paint Shade: RAL 7032 Structured Powder Coated

Description:

Sr. No. Cat No. Product CODE Description Terminal size Terminals Max. Qty. Cable Entries
1 VL/PB/2/201 As per Non Std Key Operating or Mushroom knob Type Stop 2.5/4 Sq.mm Connectwell Terminals 5Nos. M20 X 02 Nos.

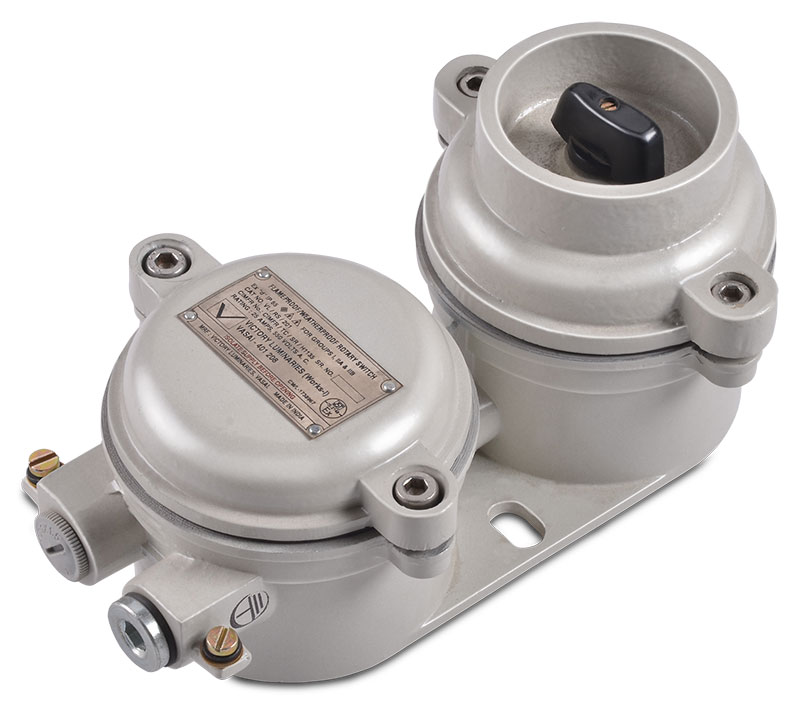

FLP / WP Rotary Switch Station

Specifications:

  • Cat Ref:VL/RS/201
  • Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof ON-OFF Rotary Switch (In Direct cable entire Type), suitable for assembly Rotary Switch rating upto 32 Amps /4 pole Qty. 01 No. & Terminal box assembled with 4 Sq. mm (Two Level ) Din Rail Mtg. Terminals in Die Cast Al. Alloy LM- 6 Construction, The main rotary switch Cover and Plain Cover are fixed by means of socket head Allen cap Stainless Steel Screws to the Main and terminal Enclosure
  • Electrical Rating : Upto 32A/ 240V /415V , 50 Hz
  • Paint Shade : Hammertone Grey Powder Coated/ RAL 7032 structured( As per customer request)

Description:

Sr. No. Cat No. Product CODE Switch Rating 415 V AC Terminal size Terminals Max. Qty. Cable Entries
1 VL/RS/201 As per Non Std Upto 16A /2P 2.5/4 Sq.mm 4 Nos. M20 X 02 Nos.
2 VL/RS/201 As per Non Std Upto 16A /4P 2.5/4 Sq.mm(Two level) 4 Nos. M20 X 02 Nos.
3 VL/RS/201 As per Non Std Upto 25A 4P 2.5/4 Sq.mm(Two level) 4 Nos. M20 X 02 Nos.
4 VL/RS/201 As per Non Std Upto 32A 4P 2.5/4 Sq.mm(Two level) 4 Nos. M20 X 02 Nos.

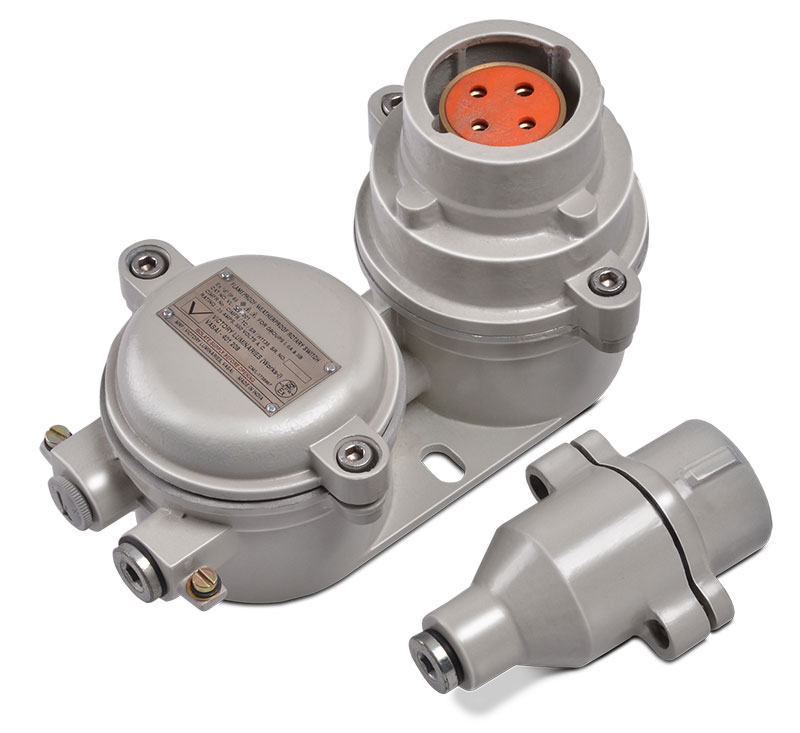

FLP/WP Switch Socket Station

Specifications:

  • Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Cat Ref:VL/SS/201
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof Switch Socket is with inter lockable type Plug (In Direct cable entry Type),& is suitable for assembled rotary switch and interconnected with female tubular brass pin in molded socket insulator, upto 5 pin (3P+N+E) in to the main Socket cover. Clip on type din rail Mtg. Terminal suitable size upto 2.5/4 Sq.mm are assembled in the Terminals enclosure in Die Cast Al. Alloy LM- 6 Construction, The main switch socket Cover and Plain Cover are fixed by means of socket head Allen cap Stainless Steel Screws to the Main and terminal Enclosure.
  • Electrical Rating :Upto 32A/ 240V /415V , 50 Hz
  • Paint Shade :Hammertone Grey / RAL 7032 structure Powder Coated( As per customer request)

Description:

Sr.No Cat No. Product CODE Switch Rating 240 V/415 VAC Pin Details Terminal size Terminals Max. Qty. Plug Entries
1 VL/SS/201 As per Non std 16 A /2P (P +N+ E) 3pin 4 Sq.mm 3 Nos. M20 X 02 Nos. M20 X 01 Nos
2 VL/SS/201 As per Non std 16 A /2P (3P +N+ E) 5pin 4 Sq.mm 5 Nos. M20 X 02 Nos. M20 X 03 Nos
3 VL/SS/201 As per Non std 25 A /2P (2P +E) 3 pin 4 Sq.mm 3 Nos. M20 X 02 Nos. M20 X 01 Nos
4 VL/SS/201 As per Non std 25 A /4P (3P +E) 4 pin 4 Sq.mm 3 Nos. M20 X 03 Nos. M20 X 01 Nos
5 VL/SS/201 As per Non std 32 A /4P (3P +N +E) 5 pin 4 Sq.mm 3 Nos. M20 X 03 Nos. M20 X 01 Nos
FLP/WP 8 Way Junction Box

Specifications:

  • Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Cat Ref:VL/JB/103
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof 8 way junction Box , suitable for assembled upto 4 Sq.mm (Two level ) Terminals Screw clamp Type Din Rail Mtg, in Die Cast Al. Alloy LM- 6 Construction ,The Cover is fixed by means of socket head Allen cap Stainless Steel Screws to the Main Enclosure
  • Electrical Rating : Upto 63A/ 240V /415V , 50 Hz
  • Paint Shade : Hammertone Grey / RAL 7032 structure Powder Coated( As per customer request)

Description:

Sr. No. Cat No. Product CODE Terminal size Terminals Max. Qty. Cable Entries Max. Nos. Cable Entries Each Side
Top Btm LHS RHS
1 VL/JB/103 As per Non Std 2.5/4Sq.mm 2 level terminal 6 M20 2 2 2 2

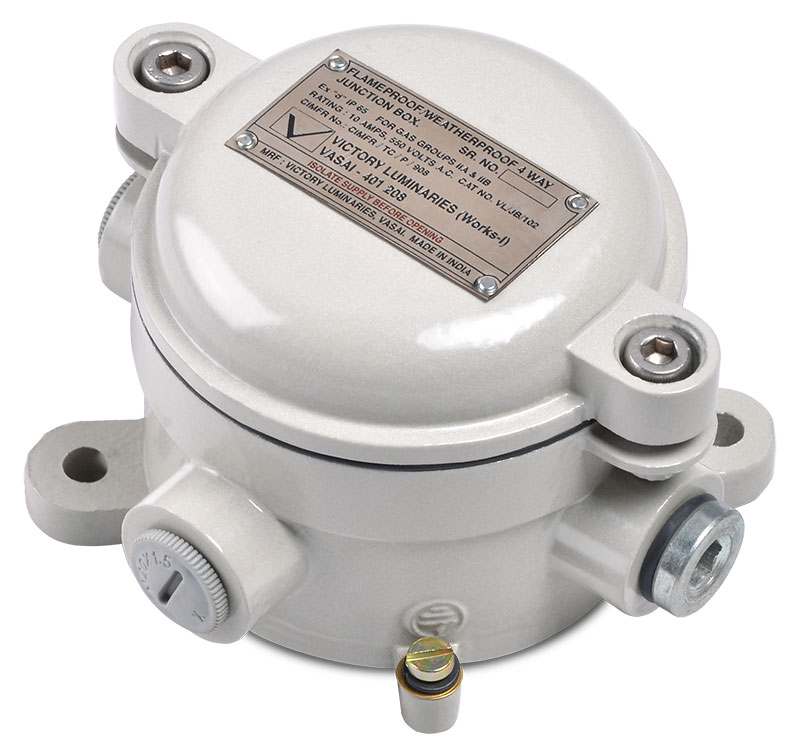

FLP/WP 4 Way Junction Box

Specifications:

  • Cat Ref:VL/JB/102
  • Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof 4 way junction Box , suitable for assembled upto 4 Sq.mm Clip On Type Din Rail Mtg. Terminals in Die Cast Al. Alloy LM- 6 Construction. The Plain Cover fixed by means of socket head Allen cap Stainless Steel Screws to the Main Enclosure.
  • Electrical Rating : Upto 32A/ 240V /415V , 50 Hz
  • Paint Shade : Hammertone Grey / RAL 7032 structure Powder Coated( As per customer request)

Description:

Sr. No. Cat No. Product CODE Terminal size Terminals Max. Assembly Qty. Cable Entries Max. Nos. Cable Entries Each Side
Top Btm LHS RHS
1 VL/JB/102 As per Non Std 2.5/4Sq.mm 5 M20 1 1 1 1

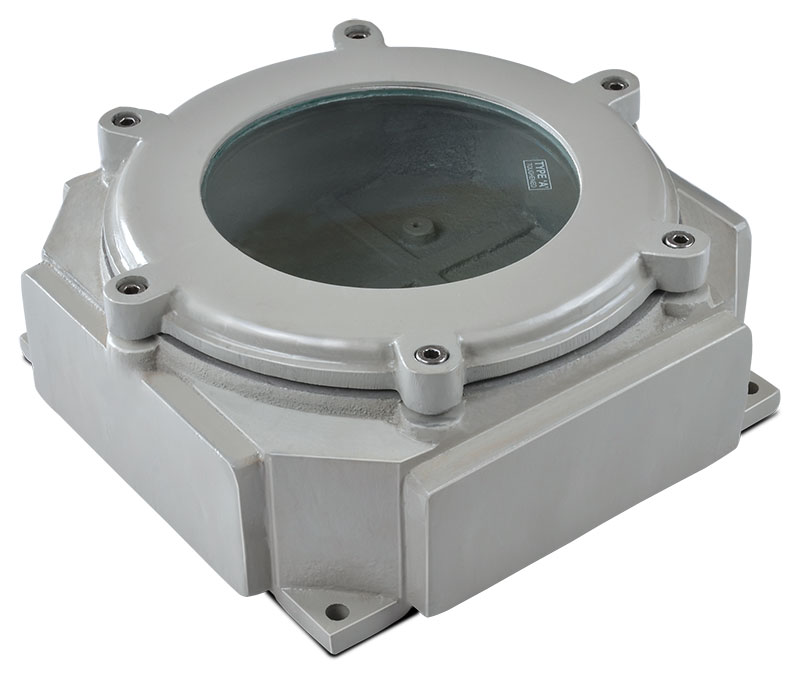

FLP Multiway Junction Box

Specifications:

  • Cat Ref:VL/IP/106(Instrument Panel) and VL/JB/106
  • ( ID: 350mm) Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof Multi Way Junction Box , suitable for assembled upto 2.5/4/6 /10/16/25/35/50/70/95 Sq.mm Clip On Type Din Rail Mtg. Terminals in Die Cast Al. Alloy LM- 6 Construction ,The Cover is fixed by means of socket head Allen cap Stainless Steel Screws to the Main Enclosure
  • Electrical Rating : Upto 100A/ 240V /415V , 50 Hz
  • Paint Shade: Hammertone Grey /RAL 7032 structure powder coated ( As per customer request)

Description:

Sr. No. Cat No. Product CODE Terminal size Terminals Max. Qty. Max. Nos. Cable Entries Each Side
1 VL/JB/106 As per Non std 2.5/4 Sq.mm 40 x 2 Row Cable Entries size and qty on Request each Side.
M20/M25/M32/M40
2 VL/JB/106 As per Non std 6 Sq.mm 30 x 2 Row
3 VL/JB/106 As per Non std 10 Sq.mm 25 x 2 Row
4 VL/JB/106 As per Non std 16 Sq.mm 20 x 2 Row
5 VL/JB/106 As per Non std 25 Sq.mm 20 x 1 Row
6 VL/JB/106 As per Non std 35 Sq.mm (Bus bar Type) 8 x 1 Row
7 VL/JB/106 As per Non std 50 Sq.mm (Bus bar Type) 8 x 1 Row
8 VL/JB/106 As per Non std 70 Sq.mm (Bus bar Type) 6 x 1 Row
9 VL/JB/106 As per Non std 95 Sq.mm (Bus bar Type) 6 x 1 Row
FLP / WP Push Button Station Start Stop with Indicating Lamp

Specifications:

  • Cat Ref:VL/PB/IL/201
  • Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof STOP-START PBS WITH INDICATING (In Direct cable entire Type), suitable for assembly upto 02 Nos. Contact Elements and 01 No Red indicting lamp , “1No” Elements operated with Green Shrouded Push knob & “1Nc” Element Operated with Red padlocking Push Knob , Terminal box assembled with 2.5/4 Sq. mm Din Rail Mtg. Terminals in Die Cast Al. Alloy LM- 6 Construction, The main Stop –Start –Indicating Cover and Plain Cover are fixed by means of socket head Allen cap Stainless Steel Screws to the Main and terminal Enclosure. The push button station is suitable for used in Zone 1 & 2, Hazardous area Gas group IIB.
  • Electrical rating: Upto 10A/ 240V /415V , 50 Hz
  • Paint Shade: Hammertone Grey /RAL 7032 structure powder coated ( As per customer request)

Description:

Sr.No Cat No. Product Code Terminal size Terminals Max. Qty. Cable Entries
1 VL/PB/IL/201 As per Non Std 2.5/4 Sq.mm 6 Nos. M20 X 02 Nos.

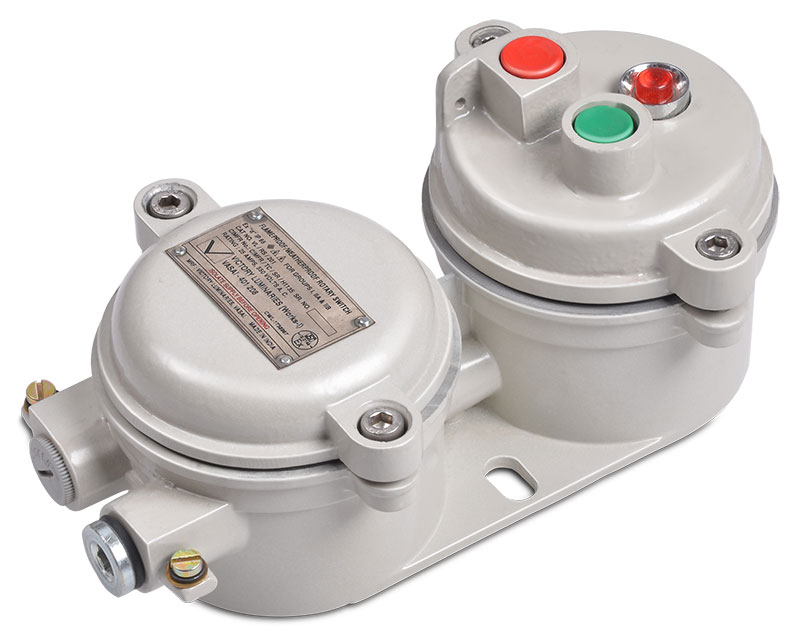

FLP / WP Push Button Station Start Stop Reverse

Specifications:

  • Cat Ref:VL/PB/3/201
  • Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof STOP-START -REV Push Button Station (In Direct cable entry Type), suitable for assembly upto 03 Nos. Contact Elements. “1No” Elements operated with Green and amber Shrouded Push knob & “1Nc” Element Operated with Red padlocking Push Knob. Terminal box assembled with 2.5/4 Sq. mm Din Rail Mtg. Terminals in Die Cast Al. Alloy LM- 6 Construction, The main Stop –Start -Rev PBS Cover and Plain Cover are fixed by means of socket head Allen cap Stainless Steel Screws to the Main and terminal Enclosure. The push button station is suitable for used in Zone 1 & 2, Hazardous area Gas group IIB.
  • Electrical rating: Upto 10A/ 240V /415V , 50 Hz
  • Paint Shade : Hammertone Grey /RAL 7032 structure powder coated ( As per customer request)

Description:

Sr.No Cat No. Product Code Terminal size Terminals Max. Qty. Cable Entries
1 VL/PB/3/201 As per Non Std 2.5/4 Sq.mm 6 Nos. M20 X 02 Nos.
FLP/WP Fire Alarm Station

Specifications:

  • Cat Ref:VL/FA/201
  • Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof Emergency Fire Alarm station (In Direct cable entry Type), in suitable for assembly upto 01 No. Contact Elements. “1No + 1 NC” Elements operated with Red Shrouded Push knob with breakable round Glass fixed with glass retaining ring with threaded joints to main cover . Terminal box is assembly with 2.5/4 Sq. mm Din Rail Mtg. Terminals in Die Cast Al. Alloy LM- 6 Construction, The main fire alarm Cove and Plain Cover are fixed by means of socket head Allen cap Stainless Steel Screws to the Main and terminal Enclosure. The Emergency Fire Alarm station is suitable for used in Zone 1 & 2, Hazardous area Gas group IIB.
  • Electrical rating: Upto 10A/ 240V /415V , 50 Hz
  • Paint Shade: Red colour Powder coated

Description:

Sr.No Cat No. Product Code Terminal size Terminals Max. Qty. Cable Entries
1 VL/FA/201 As per Non Std 2.5/4 Sq.mm 2 Nos. M20 X 02 Nos.

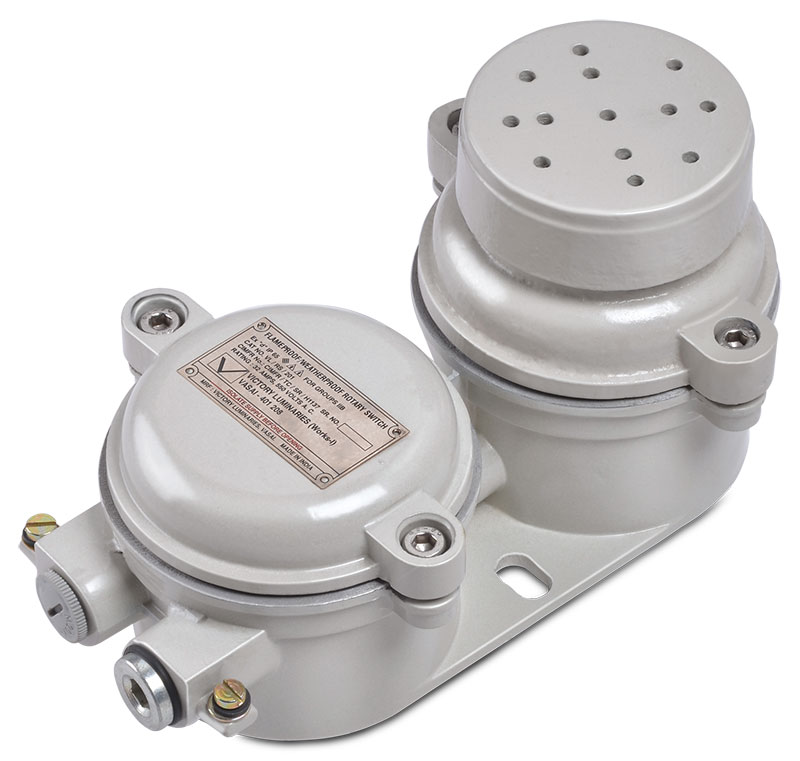

FLP Hooter Buzzer station

Specifications:

  • Cat Ref:VL/HT/201
  • Ex ‘d’ Gas Group IIA / IIB IP-65 for Zone 1 & 2 Areas
  • Conforming Certification: CIMFR /BIS/PESO
  • This Flameproof cum Weatherproof Emergency HOOTER (In-Direct cable entry Type), suitable for Assembled step down transformer upto input supply 240V AC / 12-24 DC OR Direct 24 V DC Supply with hooter circuit , hooter retaining ring fixed with threaded joints in to main cover . Terminal box assembled with 2.5/4 Sq. mm Din Rail Mtg. Terminals in Die Cast Al. Alloy LM- 6 Construction, The main hooter Cover and Plain Cover fixed by means of socket head Allen cap Stainless Steel Screws to the Main and terminal Enclosure. The Emergency hooter is suitable for used in Zone 1 & 2, Hazardous area Gas group IIB.
  • Electrical rating: Upto 240V , 50 Hz
  • Paint Shade: Hammertone Grey /RAL 7032 structure powder coated ( As per customer request)

Description:

Sr.No Cat No. Product Code Terminal size Terminals Max. Qty. Cable Entries Electical Supply
1 VL/HT/201 As per Non Std 2.5/4 Sq.mm 2 Nos. M20 X 02 Nos. 240 V AC / 50Hz
2 VL/HT/201 As per Non Std 2.5/4 Sq.mm 2 Nos. M20 X 02 Nos. 24 V AC
