Weatherproof Junction Box & Switchgear

Switchgear Products

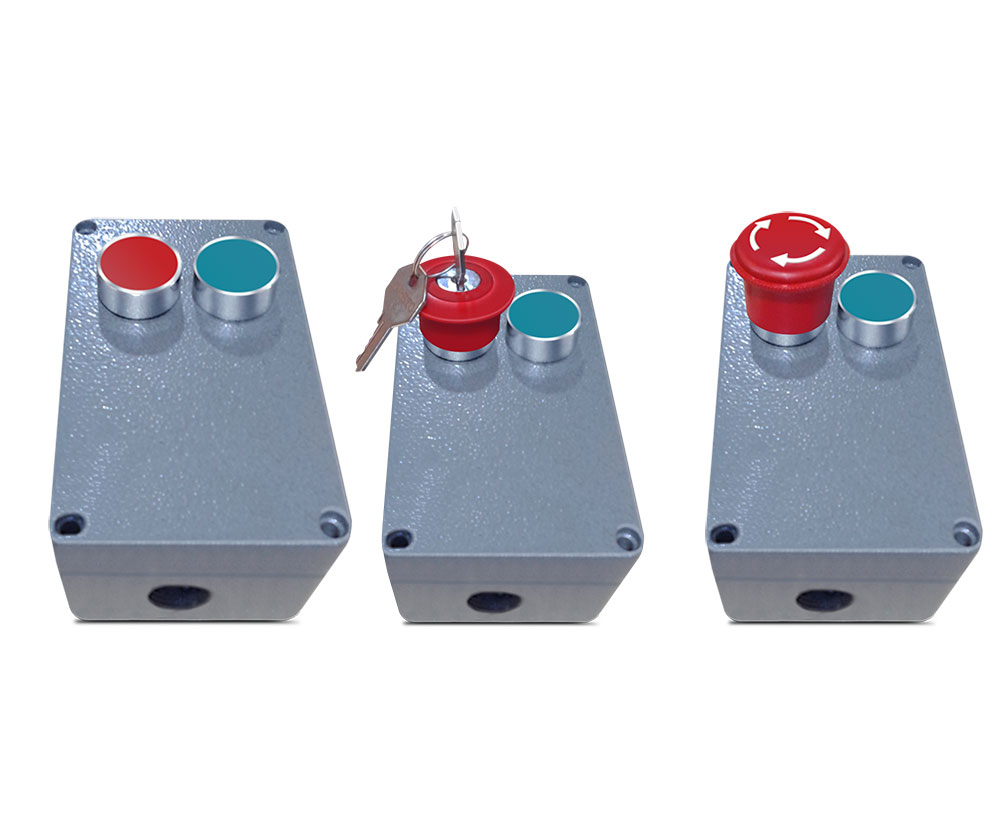

Weatherproof Push Button Stations

Specifications:

  • Material : Die cast Aluminum Alloy.
  • IP-65 for Safe Areas
  • Cable Entries: Max 2 Nos. M20
  • Finish: Epoxy Light Grey Shade
  • Contact Elements : up to 10 A , 240 / 415 V AC , 50 Hz.

Description:

Cat No. Description Cat No. Description
WP PB 201 Stop or start PBS WP PB IL 201 Stop + start PBS WITH INDICATING LAMP
WP PB 202 Stop +start PBS with Key Mushroom Head WP PB 203 Stop + FOR + REV PBS
WP PB 202 Stop +start PBS Mushroom Head WP RS 201 UPTO 32 A / TP ON – OFF Rotary switch , 230 V AC
WP PB 202 Stop +start PBS Shrouded Head WP LC 230 UPTO 32 A / TP ON – OFF Rotary switch + Ammeter + stop - start PBS , 230 /415 V AC

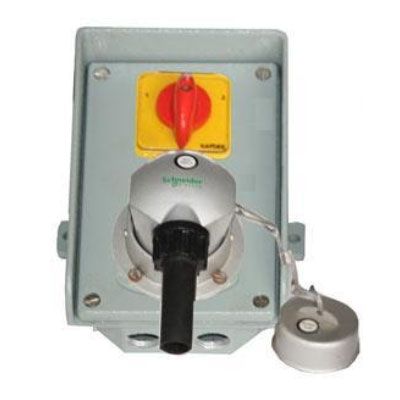

WP SWICTH SOCKETS WITH PLUGS

Specifications:

  • CAT No. WP SS 201..SERIES
  • Material : Die cast Aluminum Alloy.
  • IP-65 for Safe Areas
  • Cable Entries: Max 2 Nos. M20
  • Finish: Epoxy Light Grey Shade
  • Switch : up to 16 /32 /63 A , 240 / 415 V AC , 50 Hz.

Description:

Cat No. Description Rating
WP SS 201 16 A / 240 V AC Switch Sockets with Plug 3 PIN (P + N + E) 16A / 240 V AC , 50 Hz
WP SS 201 25 A / 240 / 415 V AC Switch Sockets with Plug 4 PIN (2P + N + E) 25A / 240 -415 V AC , 50 Hz
WP SS 201 32 A / 415 V AC Switch Sockets with Plug 5 PIN (3P + N + E) 32A / -415 V AC , 50 Hz
WP SS 601 63 A / 415 V AC Switch Sockets with Plug 5 PIN (3P + N + E) 63A / 415 V AC , 50 Hz
WeatherproofJunction box

Specifications:

  • CAT No. WP JB ..SERIES
  • Material : Die cast Aluminum Alloy.
  • IP-65 for Safe Areas
  • Cable Entries:Max 4 Nos. M20 / M25
  • Finish: Epoxy Light Grey Shade
  • Terminals : 4 WAY up to 32 A , 240 / 415 V AC , 50 Hz. OR dine Rail Terminals upto 10Sq.mm
  • Mounting: Handle provided for using as handheld equipment/ Eyebolt will be provided upon customer request
  • Electrical Rating : 240 V AC , 50 Hz.

Description:

Cat No. JB Dia / Size Terminals Terminals Qty Cable Entries
WP JB 102 Dia 100 15 A 2 way 03 Nos. 04 Nos. M20
WP JB 080 200 L x 120 W x 80 H 2.5/ 4 Sq mm Dine Rail Terminals 10 Nos. On request
WP JB 090 200 L x 120 W x 90 H 2.5/ 4 Sq mm Dine Rail Terminals 20 Nos. On request
WP JB 110 230 L x 200 W x 110 H Upto 2.5/4 Sq. mm Dine Terminals 1 x 15 Nos. & 1 x 15 Nos. On request
WP JB 110 230 L x 200 W x 110 H Upto 10 Sq. mm Dine Terminals 10 Nos. On request
